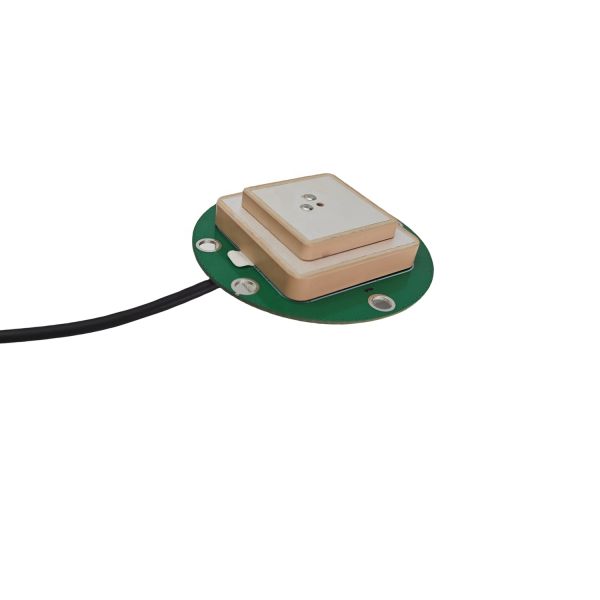

Multi-Frequency RTK GNSS GPS GLONASS BD GALILEO Built-In Ceramic with Vertical Polarization

Frequency Range : GPS:L1/L2/L5; BDS:B1/B2/B3; GLONASS:G1/G2/G3; Galileo:El/E5a/E5b

Operational Temperature : -50~+85℃

Model Number : RG02101A

Supply Ability : 400000pcs per month

Polarity : vertical

Polarization : Vertical

Connectivity : as requirement

LNA Gain : 38dBi

Color : white

Horizontal plane coverage angle : 360

Connector : as requirement

Packaging Details : opp bag single pcs

Dimension : 60mm*30mm

VSWR : ≤1.8

Impedance : 50Ω

Certification : ISO9001/IATF16949

Brand Name : RIDA Antennaer

MOQ : 2

Place of Origin : Guangdong, China

Material : PET, ceramic

Delivery Time : 10-15days

Type : GPS/GNSS Antenna

Contact Now

Multi-star Multi-frequency Built-in RTK GNSS Ceramic Antenna GNSS GPS GLONASS BD GALILEO Antennas Customization scope:Antenna Performance, Appearance, Cable length, Connector type

Products Description
Multi-Frequency RTK GNSS GPS GLONASS BD GALILEO Built-In Ceramic with Vertical Polarization
Product Description
Compact, rugged, multi-band, high gain, suitable for many types of high-precision positioning applications, such as drones, new energy vehicles, industrial helmets, unmanned delivery vehicles, intelligent agriculture and other outdoor equipment.
It can be debugged according to customers' requirements and providing coverage for triple-band GPS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b, BeiDou-B1/B2/B2a, NavIC-L5, plus L-Band correction services.

· FEATURES


- Active GPS with integrated LNA

- 2G/3G/4G band support

- 2.4 GHz WiFi

- Circular polarization

- Adhesive mounting

· APPLICATIONS


- Precision GNSS Positioning

- Autonomous vehicle tracking and
guidance

- Smart Agriculture

- Law enforcement and public safety

-Tri-frequency RTK and GNSS receivers

· OPTIONS


- Cable Length

- Connector Type
Product Parameters & Customizable Range
Antenna
Frequency range
GPS-L1/L2/L5,
GLONASS-G1/G2/G3,
Galileo-E1/E5a/E5b,
BeiDou-B1/B2/B2a,
NavIC-L5, L-Band
impedance
50Ω
Polarization
RHCP
Antenna axis ratio
≤1.5dB
Horizontal plane coverage angle
360°
Output standing wave
≤2.0
Maximum gain
4dBi
Dimension
⊘60mm*30mm
LNA
Gain
38dBi
Noise factor
≤2dB
Output standing wave
≤2.0
Operating Voltage
3.3~12VDC
Operating current
≤45mA
Gain Flatness
±2dB
Working Environment
Operating temperature
-40℃~+85℃
Storage temperature
-55℃~+85℃
Humidity
95%Non-condensing
